DIN 6799 Retaining Rings E-Type

DIN 6799 retaining rings E-type is a commonly used spring connector, widely used in mechanical equipment, automobiles, electronic products and other fields. As a professional manufacturer and supplier of this product, Wolun Pneumatic is committed to providing customers with high-quality products and professional services.

وصف المنتج

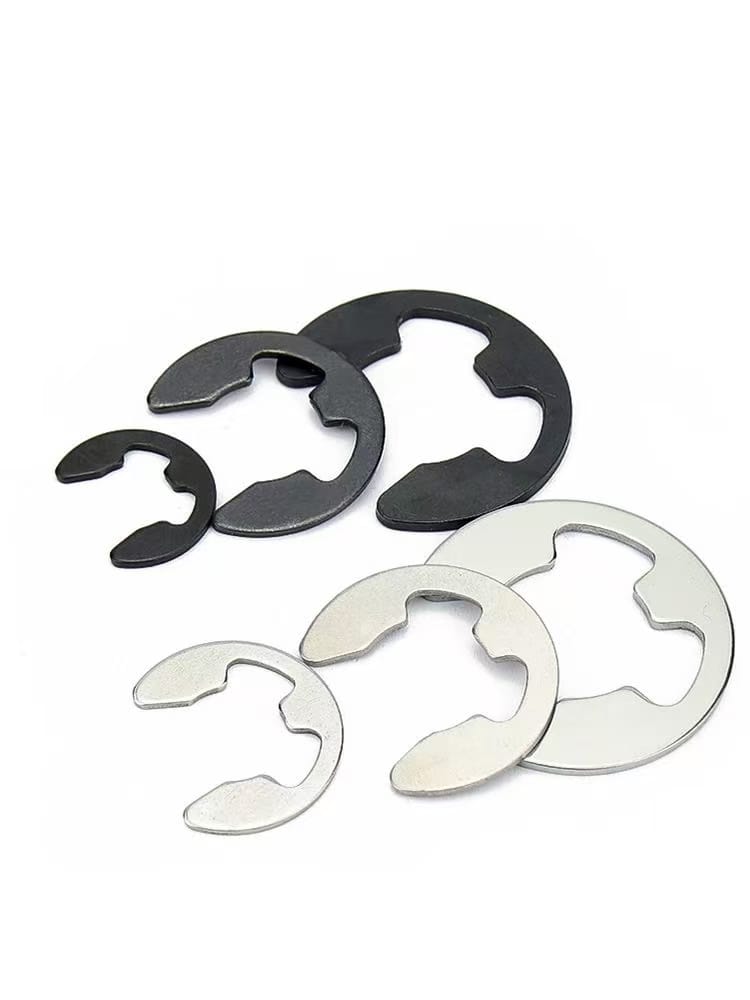

The shape of DIN 6799 Retaining Rings E-Type opens into an E shape and is usually used to define the axial position of the bearing. It can prevent other parts mounted on the shaft from moving. It is installed on the grooved shaft and used to fix the hole movement of the parts. The inner diameter of this type of retaining ring is slightly smaller than the assembly shaft diameter. During installation, circlip pliers must be used to insert the pliers into the pliers hole of the retaining ring and expand the retaining ring before it can be placed into the pre-processed shaft groove. Open retaining rings are widely used in agriculture, industry, automobile industry, etc., as long as the bearing rotates, retaining rings may be used.

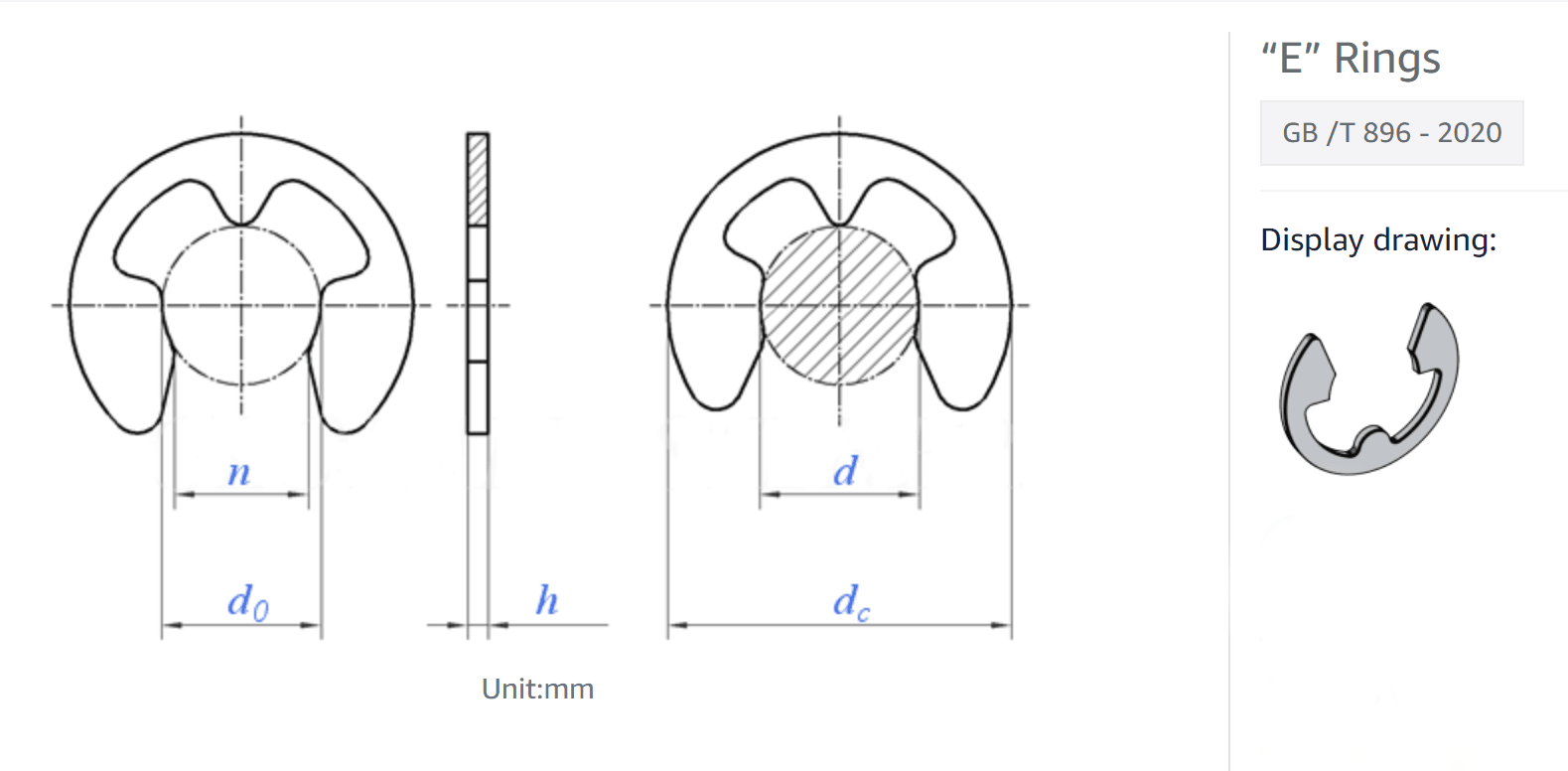

Nominal Diameter d		0.8	1.2	1.5	1.9	2.3	3.2	4	5	6
d	max	0.8	1.2	1.5	1.9	2.3	3.2	4	5	6
d	min	0.76	1.14	1.44	1.84	2.24	3.125	3.925	4.925	5.925
do	max	0.74	1.12	1.41	1.8	2.2	3.06	3.85	4.83	5.81
do	min	0.7	1.06	1.35	1.74	2.14	2.985	3.775	4.755	5.735
h	Nominal Size	0.2	0.3	0.4	0.5	0.6	0.6	0.7	0.7	0.7
	max	0.22	0.32	0.42	0.52	0.62	0.62	0.72	0.72	0.72
	min	0.18	0.28	0.38	0.48	0.58	0.58	0.68	0.68	0.68
n	Nominal Size	0.58	1.01	1.28	1.61	1.94	2.7	3.34	4.11	5.26
	max	0.62	1.05	1.32	1.65	1.98	2.74	3.388	4.158	5.308
	min	0.54	0.97	1.24	1.57	1.9	2.66	3.292	4.062	5.212
dc	max	2.25	3.25	4.25	4.8	6.3	7.3	9.3	11.3	12.3
per 1000 units≈kg		0.003	0.009	0.021	0.04	0.069	0.088	0.158	0.236	0.255

Nominal Diameter d		7	8	9	10	12	15	19	24	30
d	max	7	8	9	10	12	15	19	24	30
d	min	6.91	7.91	8.91	9.91	11.89	14.89	18.87	23.87	29.87
d₀	max	6.79	7.75	8.73	9.71	11.65	14.59	18.49	23.39	29.25
d₀	min	6.715	7.66	8.64	9.62	11.54	14.48	18.36	23.26	29.1
h	Nominal Size	0.9	1	1.1	1.2	1.3	1.5	1.75	2	2.5
	max	0.92	1.03	1.13	1.23	1.33	1.53	1.78	2.03	2.53
	min	0.88	0.97	1.07	1.17	1.27	1.47	1.72	1.97	2.47
n	Nominal Size	5.84	6.52	7.63	8.32	10.45	12.61	15.92	21.88	25.8
	max	5.888	6.578	7.688	8.378	10.52	12.68	15.99	21.964	25.884
	min	5.792	6.462	7.572	8.262	10.38	12.54	15.85	21.796	25.716
dc	max	14.3	16.3	18.8	20.4	23.4	29.4	37.6	44.6	52.6
per 1000 units≈kg		0.474	0.66	1.09	1.25	1.63	3.37	6.42	8.55	13.5
