Airtac Type TWG/TTG Series Pneumatic Stopper Cylinder

分类 Pneumatic Cylinder

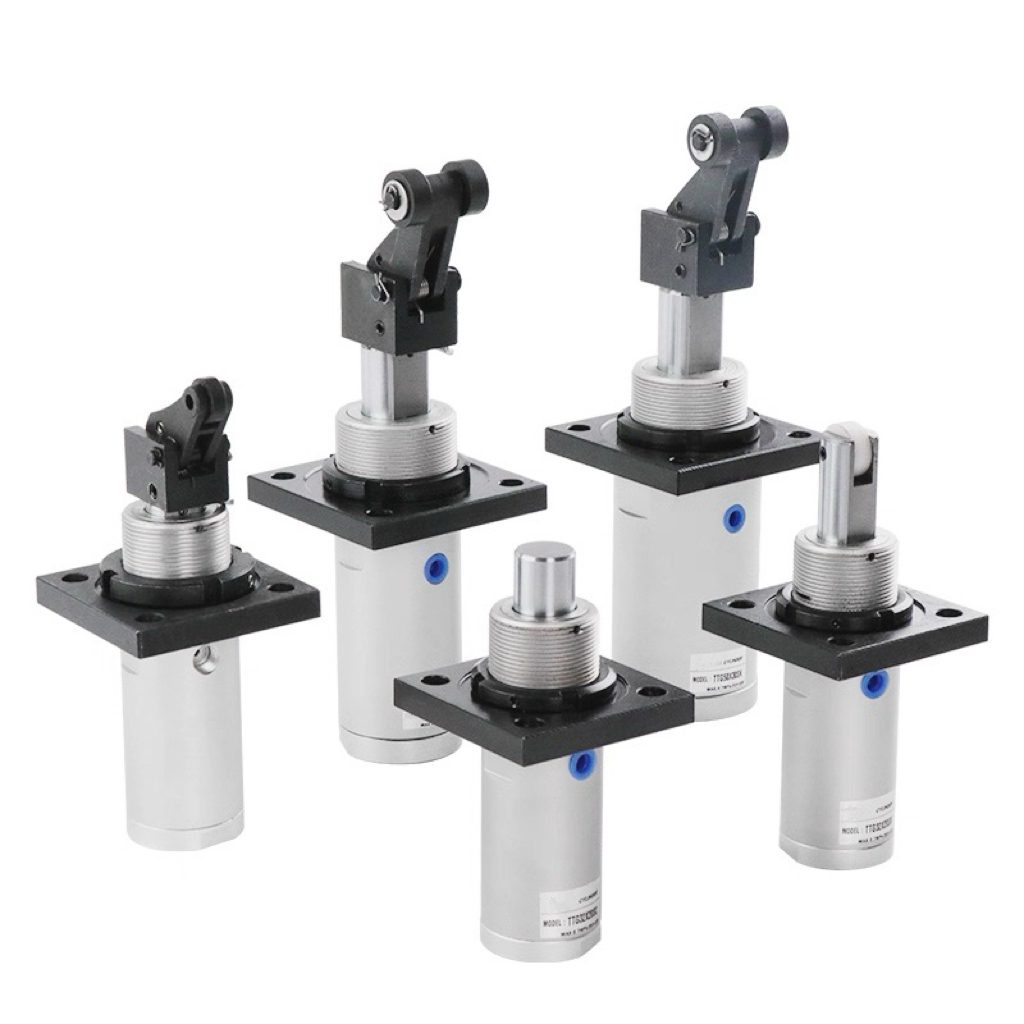

AirTAC Type Stopper Cylinders-TWG Series

Model : TWG32/TWG40/TWG50

Pneumatic Stopper Cylinder TWG Series Double Acting/Single Acting Bore Size 32 to 50 Equal To AIRTAC TWG Stopper Cylinder

Product Feature

Pneumatic stopper cylinder, double acting, bore 32mm-50mm with magnet, shockless stopper (adjustable absorber)

●JIS standard is implemented.
●Widening the piston rod can effectively improve that impact resistance ability of the cylinder.●The installation height is adjustable and several rod end modes can be selected.The cushion effect of the stopper cylinder with shock absorber is better.
●Shockless stopper cylinder is equipped with selflock device, which can prevent the returning of rebound of rocker caused by barobjects.●Several series and specifications for stopper cylinders can be selected.

Pneumatic Stopper Cylinder TWG Series Ordering Code

TWG	–	50	x	20	–	S	K	F	–	G
Model		Bore size		Stroke		Magnet	Stopper	Self-lock function		Thread type

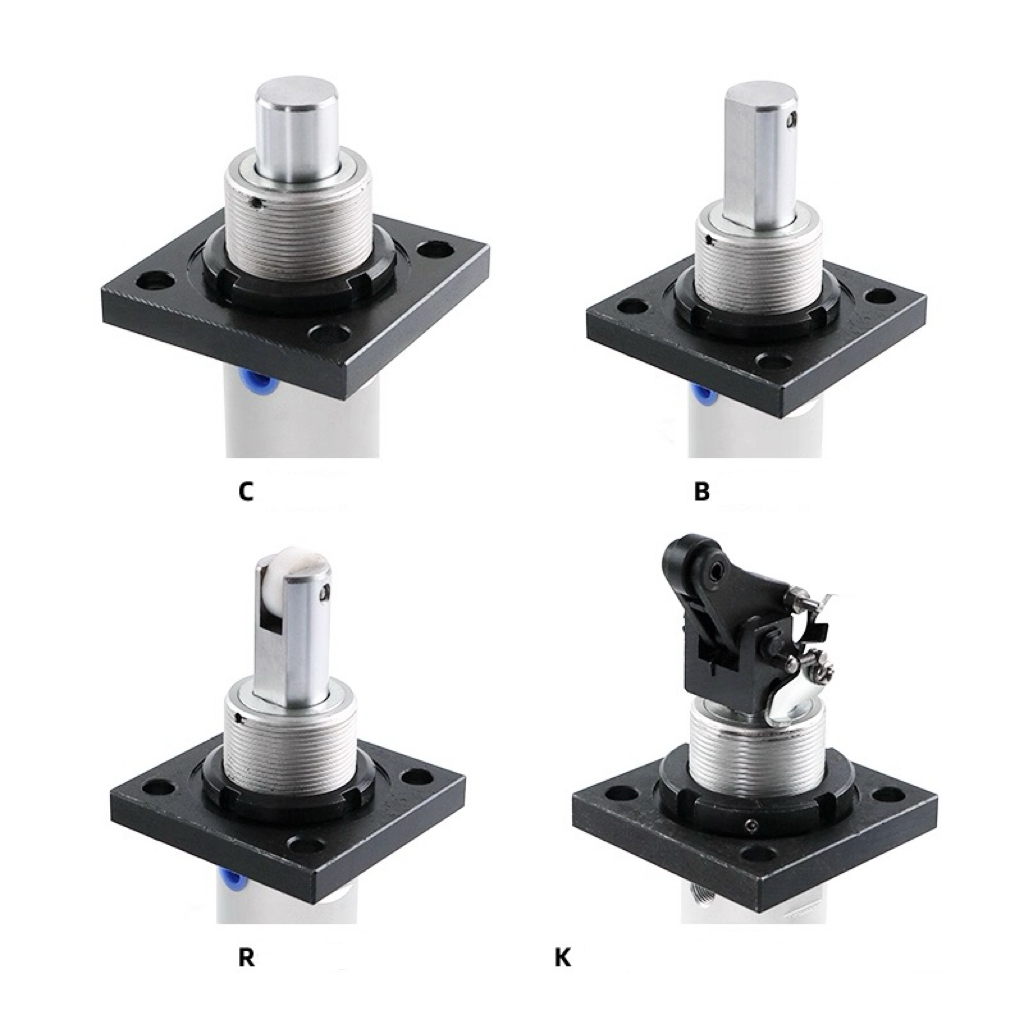

TWG: Stopper cylinder (Adjustable for height , double acting type)		32		10,15,20		S:With magnet	C:Round rod	Blank: Without self-lock		G:G
TTG: Stopper cylinder (Adjustable for height , single acting-pull type)		40		20,25,30		Blank: Without magnet	B:Flat rod	F: With self-lock		P:PT
		50		20,25,30			R: Roller
							K:Shockless stopper (With adjustable absorber)

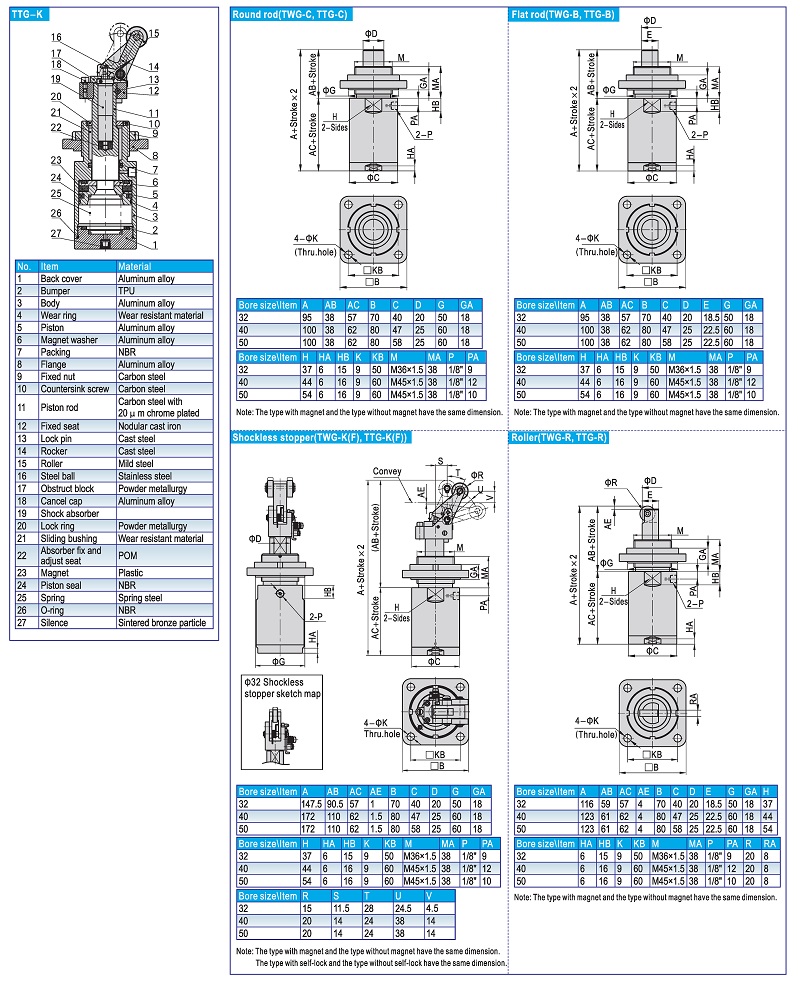

Pneumatic Stopper Cylinder TWG Series Specification

Pneumatic stopper cylinder Bore Size		32	40	50
Fluid		Air (To be filtered by 40чm filter element)
Action		Double acting type, Single acting-pull type
Operation Pressure	Double Acting Type	0.15∽1.0Mpa(23∽145Psi)
	Single Acting-Pull Type	0.2∽1.0Mpa(28∽145psi)
Proof Pressure		1.5Mpa(215Psi)
Temperature ℃		-20∽80
Range of stroke tolerance		0^+1.0
Cushion type		Bumper
Lubrication		Non Required
Mounting Type		Flange (The mounting high can be changed)
Stopper type		Round rod,Flat rod,Roller shock less stopper (With absorber)
Port Size		1/8″
