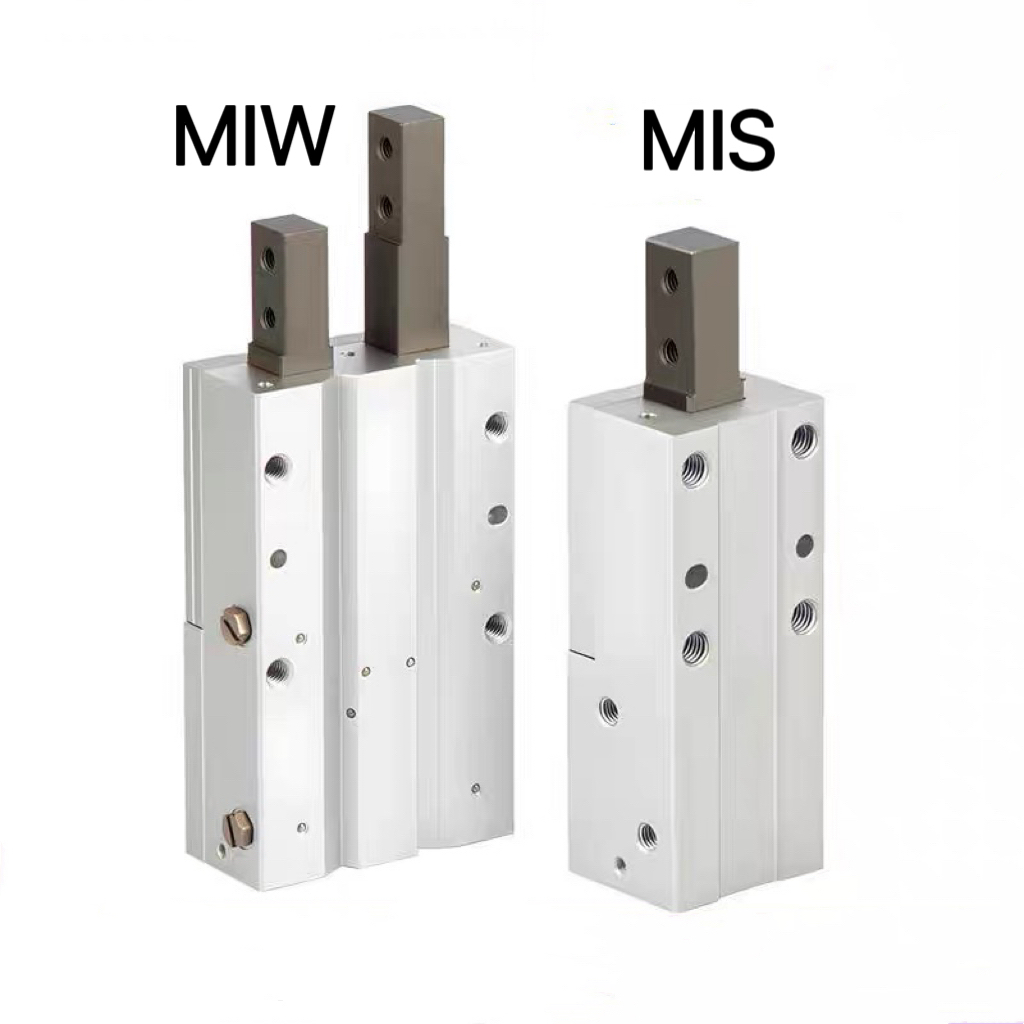

SMC Type MIW / MIS Escapements Series High Performance Pneumatic Air Cylinder Gripper

SMC Gripper Cylinder Pneumatic Air Cylinder Gripper High Performance Miw-Mis Series

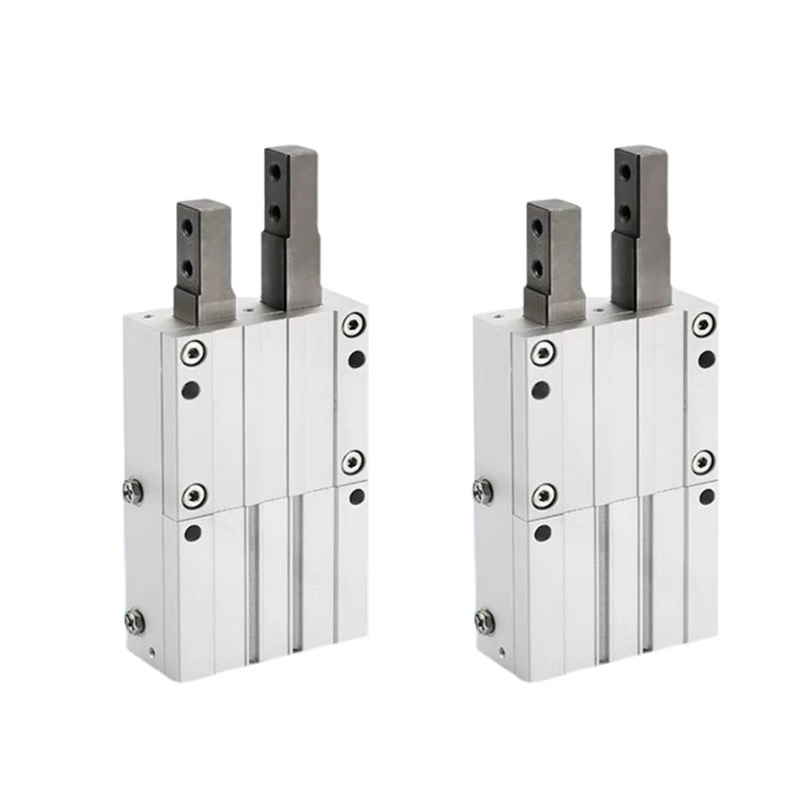

MIW - Escapements-Double finger type - SMC
分类

Pneumatic Air Cylinder Gripper High Performance Miw/Mis Series

Series : MIW ( Double Finger ) ,

MIS ( Single Finger )

Fluid : Air Operating

Pressure : 0 . 2 to 0 . 7 MPa

Ambient Temperature and fluid temperature : – 10 to 60 ℃ ( No freezing )

Lubrication : Non Action : Double acting Auto switch ( optional ) Note ) : Solid state auto switch ( 3 – wire , 2 – wire )

Stroke Tolerance : +1mm

0mm

ASK FOR A QUOTE

MIS / MIW Escapements Servo Electric Grippers Low Pressure ISO9001 Certification



Specifications

Series MIW ( Double Finger ) MIS ( Single Finger )
Fluid Air
Operating Pressure 0 . 2 to 0 . 7 MPa
Ambient Temperature and fluid temperature – 10 to 60 ℃ ( No freezing )
Lubrication Non – lube
Action Double acting
Auto switch ( optional ) Note ) Solid state auto switch ( 3 – wire , 2 – wire )
Stroke Tolerance +1mm

0mm

Theoretical Output

Bore Size ( mm ) Rod Size ( mm ) Operating direction Piston area ( mm ² ) Operating Pressure MPa
0 . 2 0 . 3 0 . 4 0 . 5 0 . 6 0 . 7
8 4 OUT 50 10 15 20 26 31 36
IN 38 7 11 15 19 23 26
12 6 OUT 113 23 34 45 57 68 79
IN 85 17 26 34 43 51 60
20 10 OUT 314 63 94 126 157 188 220
IN 236 47 71 94 118 142 165
25 10 OUT 491 98 147 196 245 295 344
IN 412 82 124 165 206 247 288
32 12 OUT 804 161 241 322 402 482 563
IN 691 138 207 276 346 415 484
