SMC Type MSZ Series Pneumatic Double Acting Cylinder 3 Position Rotary Table Compact

Ask For A Quick Quote

分类 Pneumatic Cylinder

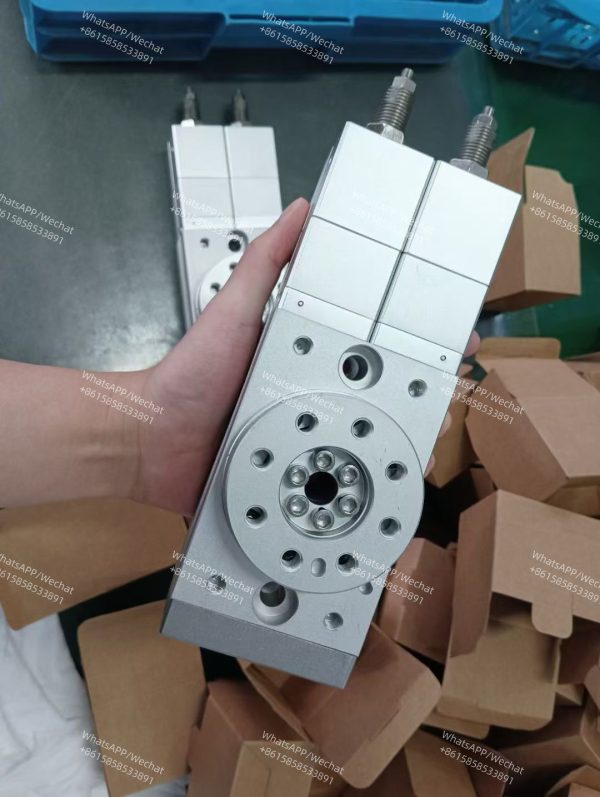

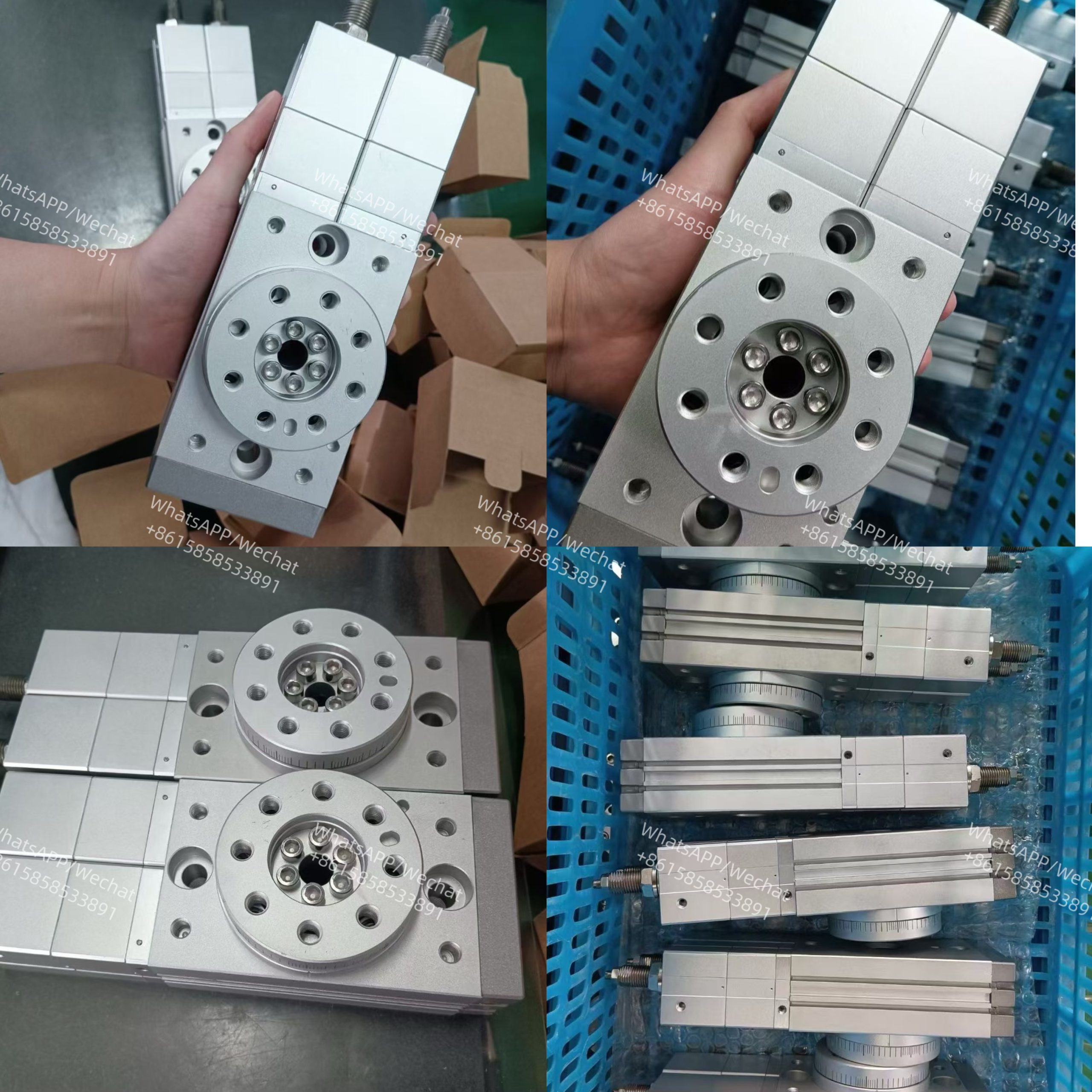

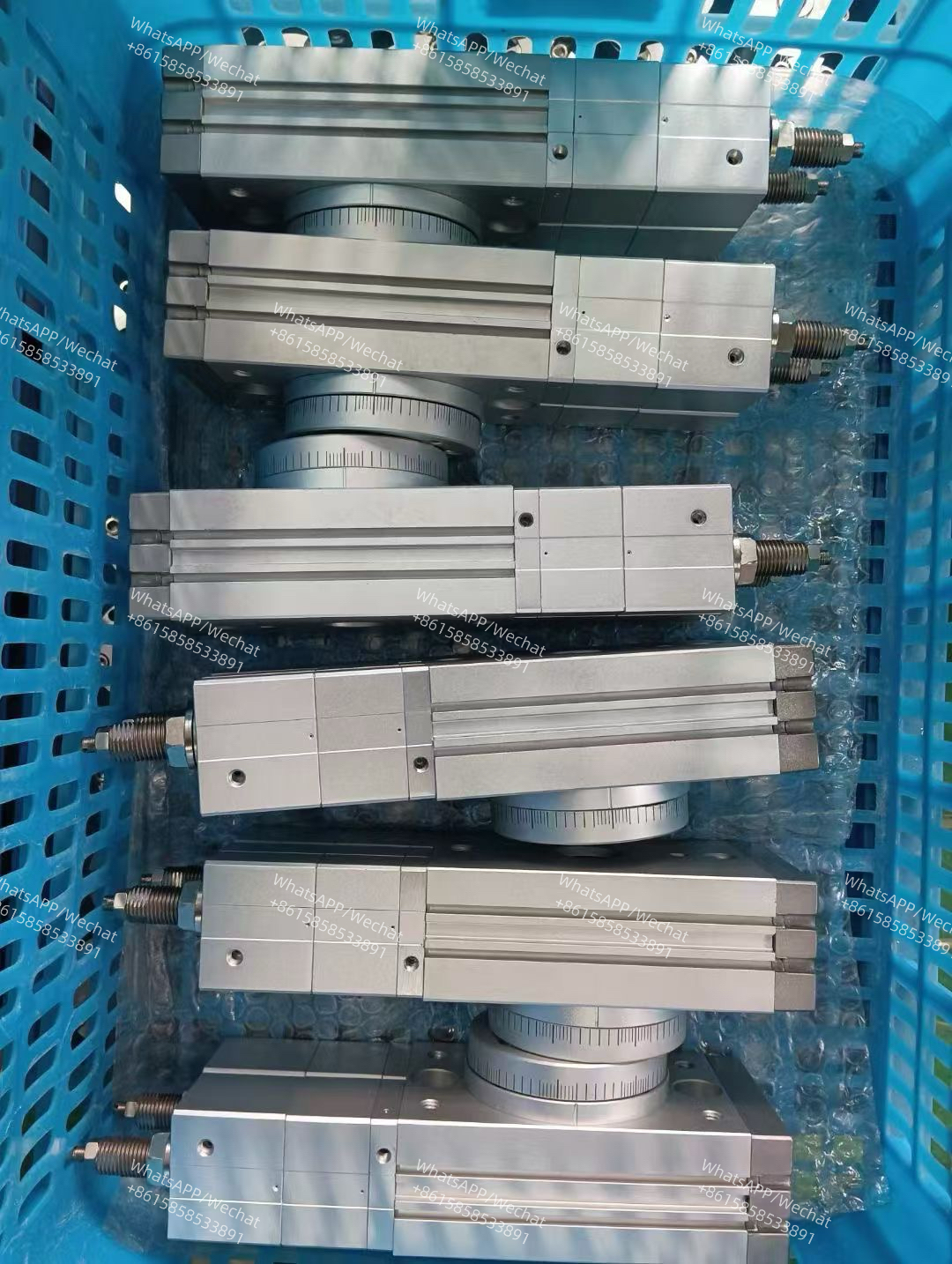

MSZ Series Compact rotary table double acting Pneumatic air cylinder Bore size 10mm-50mm e.g. MSZA-10A-M9BW with rotation angle range 0~190°

* MSZ rotary table air cylinder SMC equvalent

* Rotation angle adjustment range:0~190°
* Double piston,compact,rack and pinion rotary actuator

* Position is adjustable to between 0 and 95° from center to both right and left sides

* Controllable with one 3-position solenoid valve
* Small size and light weight.
* Variety of installation options for space-saving.

* Bore size 10mm,20mm,30mm,50mm

	MSZA	10	A	M9BW
High precision type	MSZA	Bore size: 10mm 20mm 30mm 50mm	A:With adjustment bolt	Auto switch: Nil: Without auto switches	Number of auto switches: Nil: 2PCS n:”n”PCS
Basic type	MSZB

Size	10	20	30	50
Fluid	Air(non-lube)
Maximum operating pressure	1MPa
Minimum operating pressure	0.2MPa
Ambient and fluid temperature	0 to 60℃(with no freezing)
Cushion	None
Rotation angle adjustment range	0 to 190°
Center position adjustment range	±10°
Port size	M5

Allowable kinetic energy(J)

Rotation time adjustment range for stable operation(s/90°)
