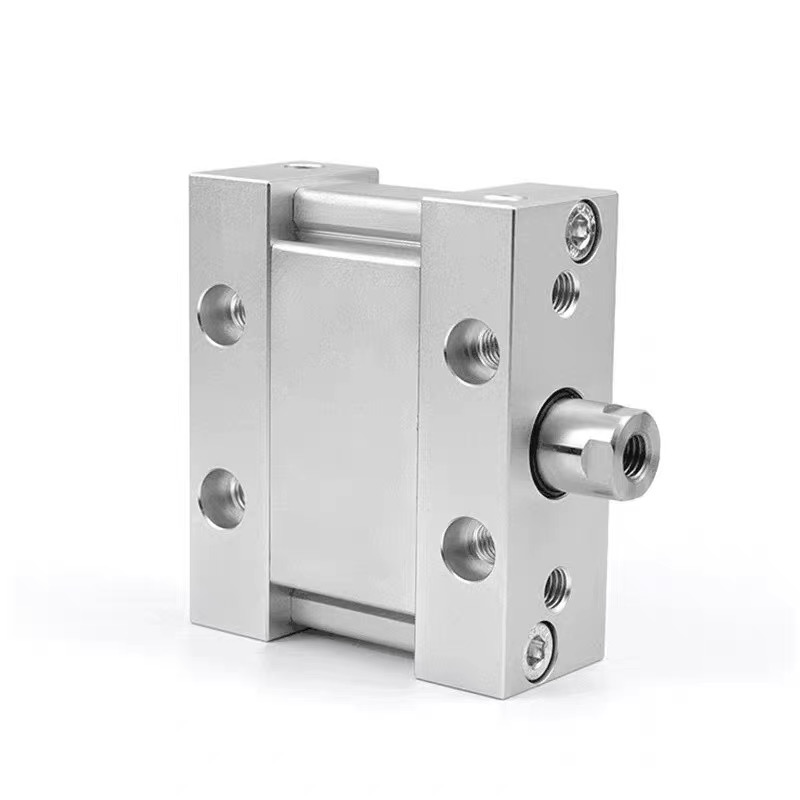

SMC Type MUB Series Plate Cylinder, Single Rod, Double Acting

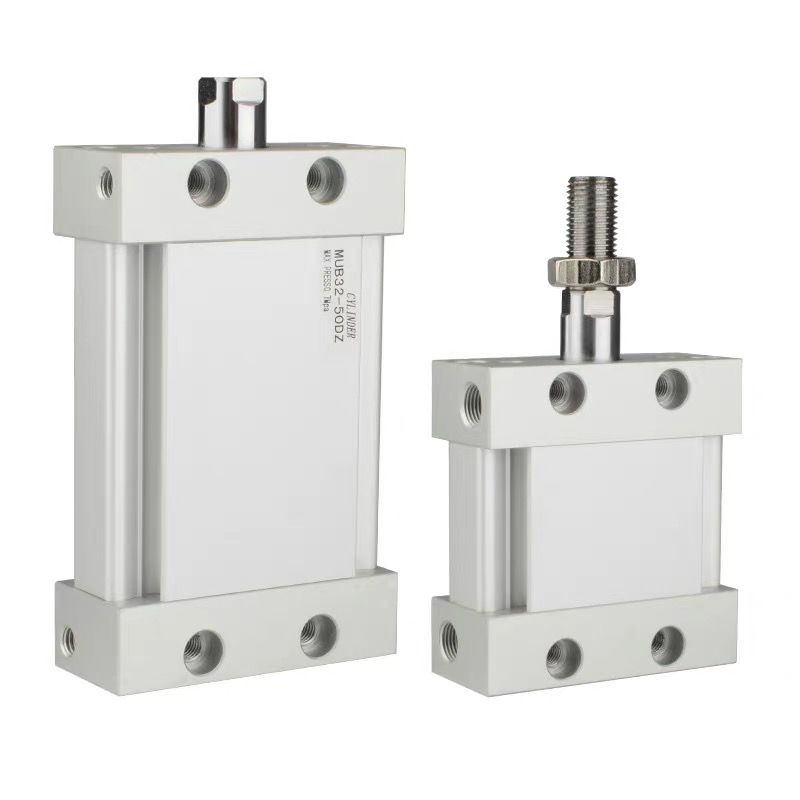

SMC Oval Flat Cylinder Mub Mdub25-32-40-10d-15D-25D-30d-45D Dz Dm

分类 Pneumatic Cylinder

Product Feature

1. Plate type cylinder design for ultra compact, oval piston design for non-rotation and space saving.

2. Possible to mount without brackets.

3. There are magnetic switch slots on sides for the cylinder body, which is convenient to install inducting switch.

4. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.

5. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation.

6. Strokes up to 300mm.

7. Installing accessories with various specifications is optional.

Ordering Code

M	D	U	B	25	x	5	–	D	MZ
	Magnet		Mounting	Bore		Stroke		Acting	Thread Type
	Blank: Without Magnet		B: Basic					D: Double acting	Nil: Rod end female thread
	D: With Magnet		L: Foot					S: Single acting spring return	M: Rod end male thread
			F: Rod Flange					T: Single acting spring extend
			G:Head Flange					W: Double shaft double acting
			C: Single Clevis
			D: Double Clevis

※ Double force and multi-force cylinders are customized.

※ If a built-in magnet cylinder without an auto switch is required,there is no need to enter the symbol for the auto switch.

Example: MDUL32-30DZ

Specifications

Bore(mm)	25	32	40	50	63
Working medium	Air
Acting type	Double acting, Single rod
Guaranteed pressure	1.05MPa
Max. Working pressure	0.7MPa
Mini. Working pressure	0.05MPa
Working temperature	-10 to 60℃
Lubrication	Not required (Non-lube)
Piston speed	50 to 500 mm/s
Tolerance of stroke	+1.4 0
Cushion Type	Rubber bumper
Mounting	Foot, Rod flange, Head flange, Single clevis, Double clevis
Rod end configuratio	Rod end male thread, Rod end female thread
Allowable rotational torque	0.25 N·m		0.55 N·m	1.25 N·m	2.0 N·m
Rod non-rotating accuracy	±1°	±0.8°	±0.5°

Stroke

Size (mm)	Standard stroke (mm)	Max. manufacturable stroke(mm)
25, 32, 40, 50, 63	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100, 125, 150, 175, 200, 250, 300	300

※ Other intermediate strokes can be manufactured upon receipt of order. Please contact VPC.

※ Strokes longer than 300 mm are not available.

Main Dimensions

Main Dimensions MUB ( Single Rod Double Acting Type)

Pneumatic Cylinder Theoretical Output Force Chart

(N)

Size	Rod size (mm)	Operating direction	Piston area (mm²)	Operating pressure (Mpa)
Size	Rod size (mm)	Operating direction	Piston area (mm²)	0.2	0.3	0.4	0.5	0.6	0.7
25	12	OUT	491	98	147	196	246	295	344
25	12	IN	378	76	113	151	189	227	265
32	14	OUT	804	161	241	322	402	482	563
32	14	IN	650	130	195	260	325	390	455
40	16	OUT	1257	251	377	503	629	754	880
40	16	IN	1056	211	317	422	528	634	739
50	20	OUT	1963	393	589	785	982	1178	1374
50	20	IN	1649	330	495	660	824	989	1154
63	20	OUT	3117	623	935	1247	1559	1870	2182
63	20	IN	2803	561	841	1121	1402	1682	1962
