SMC Type Mxq Series Pneumatic Slide Guide Cylinder

Mxq Series Bore Size 6-25mm Slide Table Air Pneumatic Cylinder

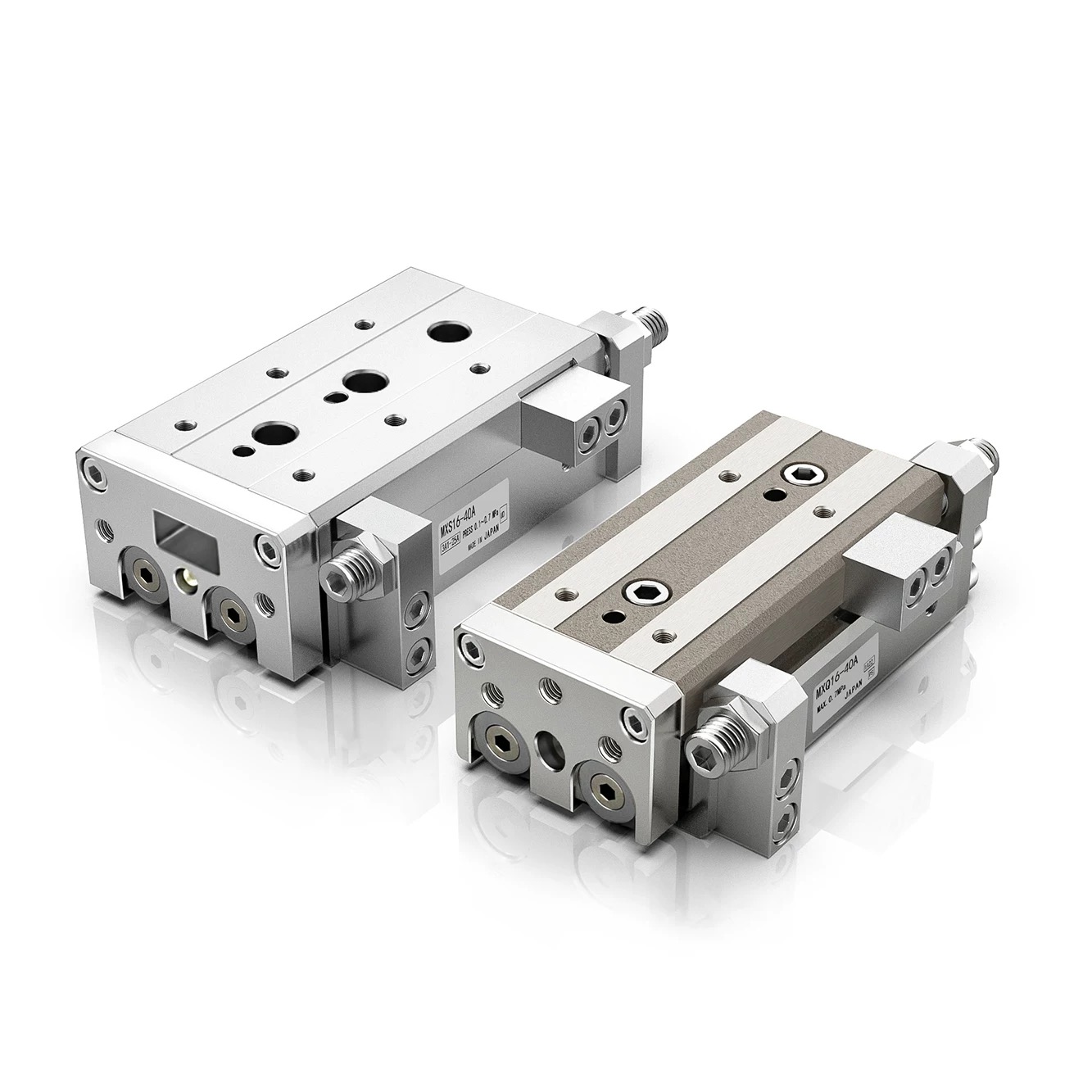

Pneumatic Manufacturer MXQ Series Slide Cylinder
Air Slide Table Mxs Mxq Dual Rod Rail Slide Air Pneumatic Tool Cylinder Bore 20 25mm Stroke 10 20 30 40 50m 75 100 125 150mm
分类

Mxq Series SMC Type Air Slide Table Pneumatic Cylinder

ASK FOR A QUOTE

MXQ Pneumatic Slide Cylinder MXQ6 MXQ8 MXQ12 MXQ16 Linear Guide Pneumatic Slide Cylinder MXQ6-20 MXQ8-50 MXQ12-30 MXQ16-40



Product Description

The slide cylinder, also known as the pneumatic slide, is a pneumatic actuator with a highly integrated degree. It integrates a variety of functions such as linear guides, limit buffers, and magnetic ring position detection. It is widely used in many fields such as automation equipment, machine tools, medical equipment, and plastic machinery.

Ordering Code

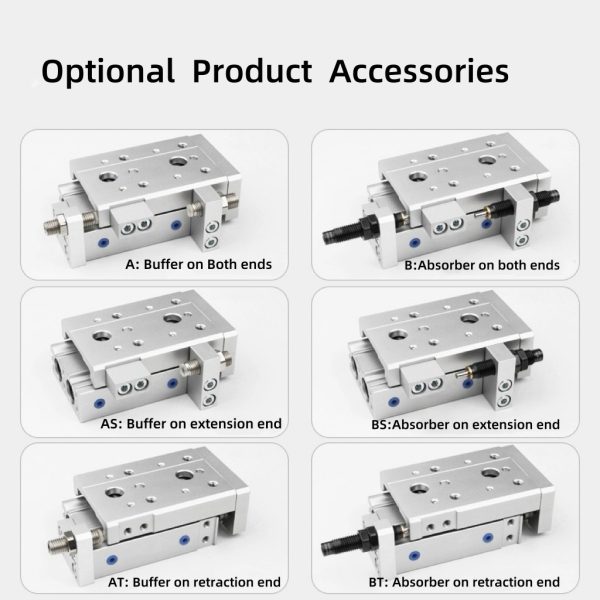

MXQ 12 L X 50 AT FR
Series Code Cylinder Bore Body Option Stroke Adjuster Type(optional) Function Option
MXQ: Air SlideTable 6mm~25mm Blank: Standard 10mm~50mm Blank: Standard Blank: Standard
L: Symmetric Type AS: Buffer on extension end F: With Buffer
AT: Buffer on retraction end R: With end lock
(not available forФ6)
A: Buffer on Both ends P:Axial piping type
BS:Absorber on extension end
(not available forФ6)		 FR: With buffer andend lock
(not available forФ6)
BT: Absorber on retraction end
(not available forФ6)		 FP: With buffer andaxial piping type
B:Absorber on both ends
(not available forФ6)
CS: Metal stopper on extension end
CT: Metal stopper on retraction end
C:Metal stopper on both ends

Specification

Model MXQ6 MXQ8 MXQ12 MXQ16 MXQ20 MXQ25
Bore Size(mm) Φ6*2

(EquivalentΦ8)

 Φ8*2

(EquivalentΦ11)

 Φ12*2

(EquivalentΦ17)

 Φ16*2

(EquivalentΦ22)

 Φ20*2

(EquivalentΦ28)

 Φ25*2

(EquivalentΦ35)
Working Fluid Air
Acting Mode Double acting
Max.working pressure 0.7MPa
Min.working pressure 0.15MPa
Fluid Temperature -10~+60ºC(No freezing)
Piston Speed 50~500mm/s (Metal stopper:50~200mm/s)
Buffering Rubber Cushion(Standard),the hydraulic shock absorber,no(metal retainer)
Stroke Tolerance(mm) +1

0
Magnetic Switch Selection D-A93
Lubrication No neeed
Port size M5*0.8   Rc1/8
