SMC Type RSQ, RSDQ Series Stopper Cylinder

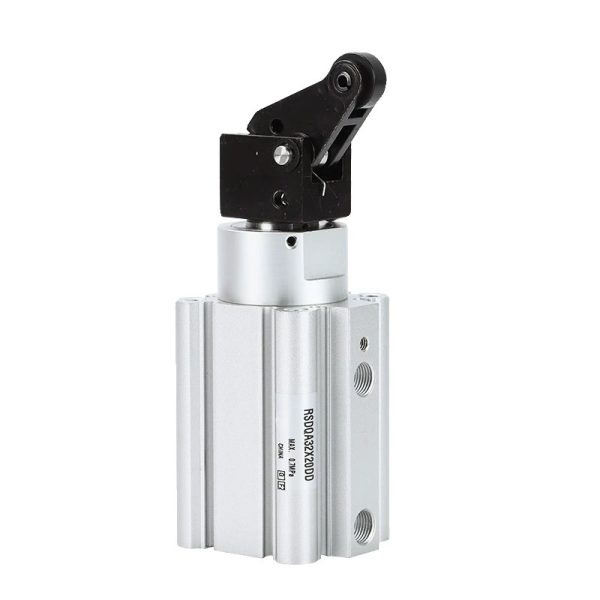

ＲＳＤＱＡ３２Ｘ２０Stopper Cylinder

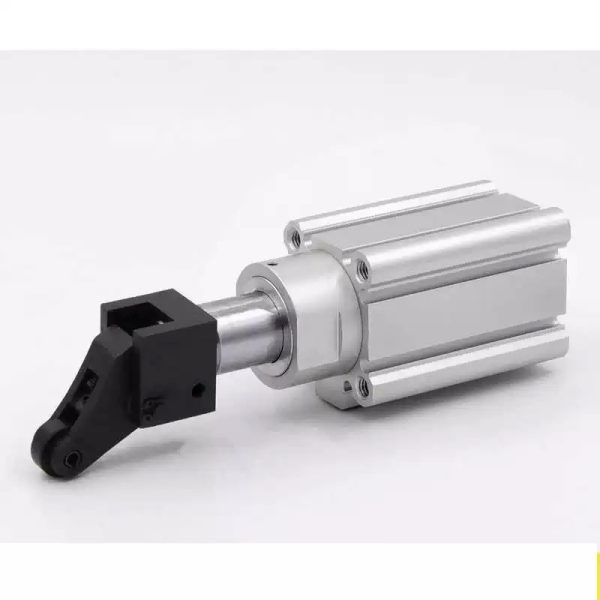

Rsq Series Stopper Cylinder

分类 Pneumatic Cylinder

RSQ, RSDQ Series Stopper Cylinder

Ordering Code

RSQ	－	B	－	20	X	15	－	D	R
Model		Mounting Type		Bore		Stroke		Action	Rod end type
RSQ:Normal type		Blank:Though Hole(Standard)		20mm				D:double action	Blank: round bar type(Ф20-Ф50)
RSDQ: with magnet inside		A:Both EndsTapped Style		32mm				S:single action with spring return	K:chamfored type(Ф20~Ф50)
				40mm				T:single action with spring extent	L:level type with shock absorber (Ф32~Ф50)
				50mm					B:level type with adjustable shock absorber (Ф32~Ф50)
									C:level type with adjustable shock absorber, cancel cap (Ф32~Ф50)
									D:level type with adjustable shockabsorber, lock mechanism(Ф32-ф50)
									E:level type with adjustable shock absorber, cancel cap&lock(ф32-ф50)

Specification

Bore(mm)	20	32	40	50
Motion Pattern	Double acting,Double acting with spring loaded,Single acting(Spring extend)
Fluid	Air
Ensured Pressure Resistance	1.5Mpa(15.3kgf/cm2)
Max.pressure	1.0Mpa(10.2kgf/cm2)
Ambient and fluid temperature	-10~+70℃:(Without auto switch:No freezing)+60℃
Buffering	(Rubber bumper)
Tolerance of stroke	+1.4 (mm)
*Lubrication	Not required
Mounting	Through-hole,Both ends tapped common
Port size	RC(PT1/8)

RS□QA20	45	5.5	M6×1	10
RS□QA32	48	5.5	M6×1	10
RS□QA40	52.5	5.5	M6×1	10
RS□QA50	54	6.6	M8×1.25	14

Bore(mm)	A	B	D	E	F	G	H	I		MJ	N	O	P	Q	T	U	V	W	Y	Z
20	67	45	12	36	8	4	22	–	–	36	5.5	9 7	Rc 1/8	20	24	24.5	22	48	47	–
32	68	48	20	45	7.5	8	20	60	4.5	34	5.5	9 7	Rc 1/8	20	36	31.5	20	58.5	–	14
40	80.5	52.5	25	52	8	10	28	69	5	40	5.5	9 7	Rc 1/8	24.5	44	35	28	66	–	14
50	82	54	25	64	8	10	28	86	7	50	6.6	11 8	Rc 1/8	24.5	56	41	28	80	–	19

Overall Dimensions

Other info

Bore(mm)		20	32	40	50
Mounting	Through- hole	●	●	●	●
	Both ends tapped style	●	●	●	●
Built-in magnet		●	●	●	●
Piping	Screw-in type	RC 1/8
	Built-in One-touch fitings	Φ6/4	Φ8/6
Action		Double acting Single acting(Single extend) , Double acting with spring loaded
Rod end configuration	Round bar	●	●
	Chamfered	●	●
	Roller type	●	●
	Lever type	–	●

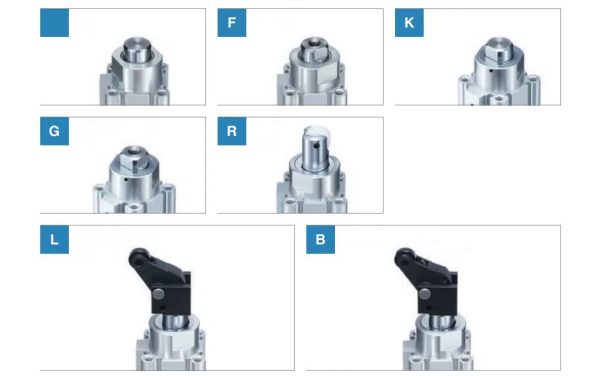

Bore size(mm)	Rod end configuration
	Round bar, Chamfered type	Roller type	Lever type with shock absober
20	10.15.20	10.15.20	– 10.15.20
32
40	20.25.30	20.25.30	20.25.30
50
