SMC Type SRC Series Twist Clamp Cylinder

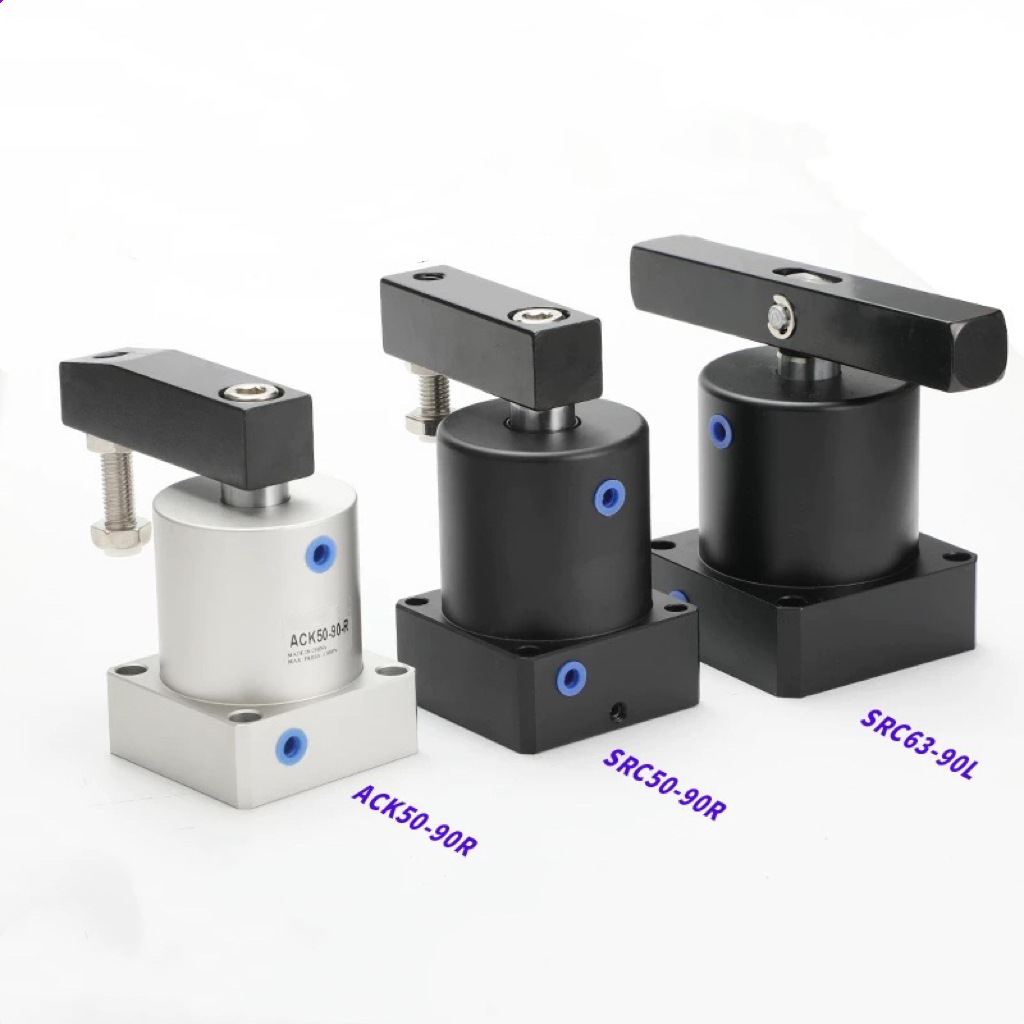

pneumatic swing clamp cylinder rotary air cylinders aluminum smc type

SRC Series Double Acting Pneumatic Cylinder Twist Clamp Rotary Type

分类 Pneumatic Cylinder

SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder
Bore size: 25-63mm
right and left direction for select.

SRC SRCD Pneumatic Rotary Clamping Air Cylinder SRC25 SRC32 SRC40 SRC50 SRC63

Features

SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder

Bore:25mm, 32mm, 40mm, 50mm, 63mm

Order Code

SRC	R	32	–	40	D
Series Code	Rotation direction	Bore code		Stroke(push)	Plate Type
SRC: Twist clamp Cylinder	L:Press down left rotation	25		25:11mm	Blank: Single Plate
	R:Press down right rotation	32		32:13mm	D: Double Plate ( not availble for Ф25)
		40		40:13mm
		50		50:15mm
		63		63:15mm

Specification

Item ⁄ Bore size(mm)	∅25	∅32	∅40	∅50	∅63
Action Forms	Double acting type
The use of fluid	Air(filtered through 40µ filter element)
Operating pressure range Kgf/cm²(Kpa)	1.5~9.5(150~950)
Temperature °C	0~60
The use of speed mm/sec	30~500
Rotary Stroke mm	11	13		15
Under the pressure stroke mm	11	13		15
Rotation Angle	90° Customizable(0°,45°,60°)
Rotation Direction	Turn left(from right to left)-L;turn right (from left to right)-R
Buffer Direction	Rubber gasket buffer
Lubrication	Free supply mode
Caliber	M5x0.8	M5X0.8

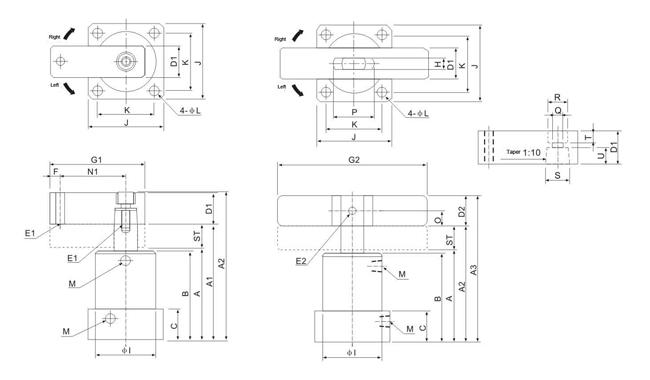

Dimension

Bore(mm)	ST	A	A1	A2	A3	B	C	D1	D2	E1	E2	F	G1	G2	H	I	J	K	L	M	N₁	O	P	Q	R	S	T	U
φ25	22	67	89	80	—	65	23	□16	□16	M6*1.0P	φ6	6	50	120	8	φ35	38	30	φ4.6	M5*0.8P	35	8	13	φ6.8	φ11.5	φ14	5	8.5
φ32	26	82	108	100	127	78	28	□19	□19	M8*1.25P	φ8	8	70	140	9	φ46	50	40	φ5.6	PT 1/8	50	9.5	23	φ9	φ14	φ16	7	9.5
φ40	26	82	108	104	127	78	28	□19	□19	M8*1.25P	φ8	8	75	140	9	φ55	60	48	φ6.8	PT 1/8	55	9.5	23	φ9	φ14	φ16	7	9.5
φ50	30	94	124	117	146.2	90	31	□25.4	□22.2	M10*1.5P	φ8	10	85	160	10	φ65	70	58	φ6.8	PT 1/8	60	11.1	29	φ11	φ18	φ20	9	12.5
φ63	30	94	124	117	146.2	90	31	□25.4	□22.2	M10*1.5P	φ8	10	95	160	10	φ78	83	67	φ9	PT 1/8	70	11.1	29	φ11	φ18	φ20	9	12.5
