SMC TypeC96 Series Pneumatic Piston Rod Double Acting Tie-Rod Air Cylinder

分类 Pneumatic Cylinder

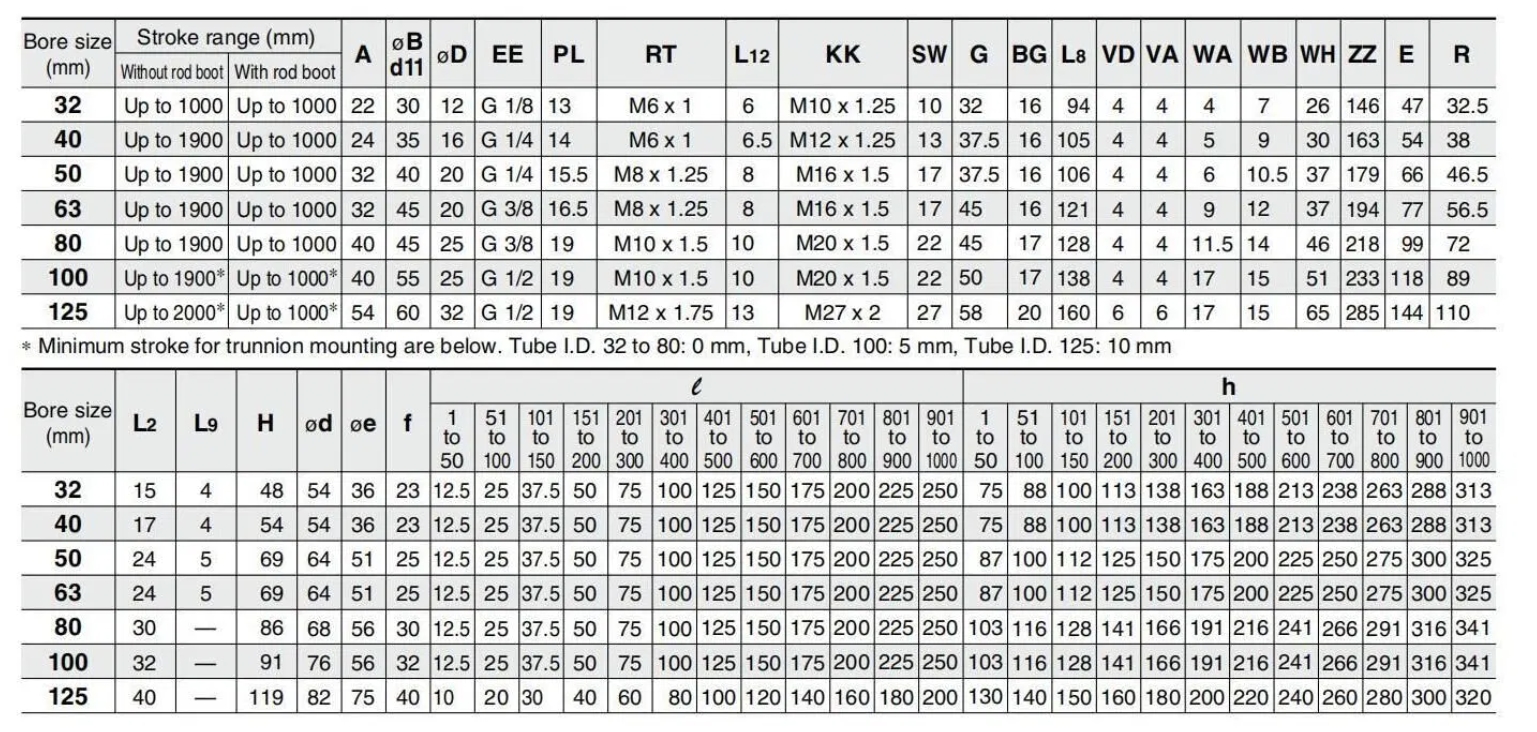

Bore size(mm)	32	40	50	63	80	100	125
working medium	Air
Acting type	Double acting
Proof pressure	1.5Mpa
Max.operating pressure	1.0Mpa
Min.operating pressure	0.05Mpa
Ambient and fluid temperature	without auto switch:-20 to 70ºC(No freezing) with auto switch:-10 to 60ºC(No freezing)
Lubrication	Not required (Non-lube)
Operating piston speed	50 to 1000mm/s						50 to 700mm/s
Allowable stroke tolerance	Up to 250 st: 0 to +1.0, 251 to 1000 st:+1.4, 1001 to 1500 st: 0 to +1.8, 1501 to 2000 st: 0 to +2.2
Cushion	Air cushion on both ends + Bumper cushion						Air cushion
Port size	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G1/2

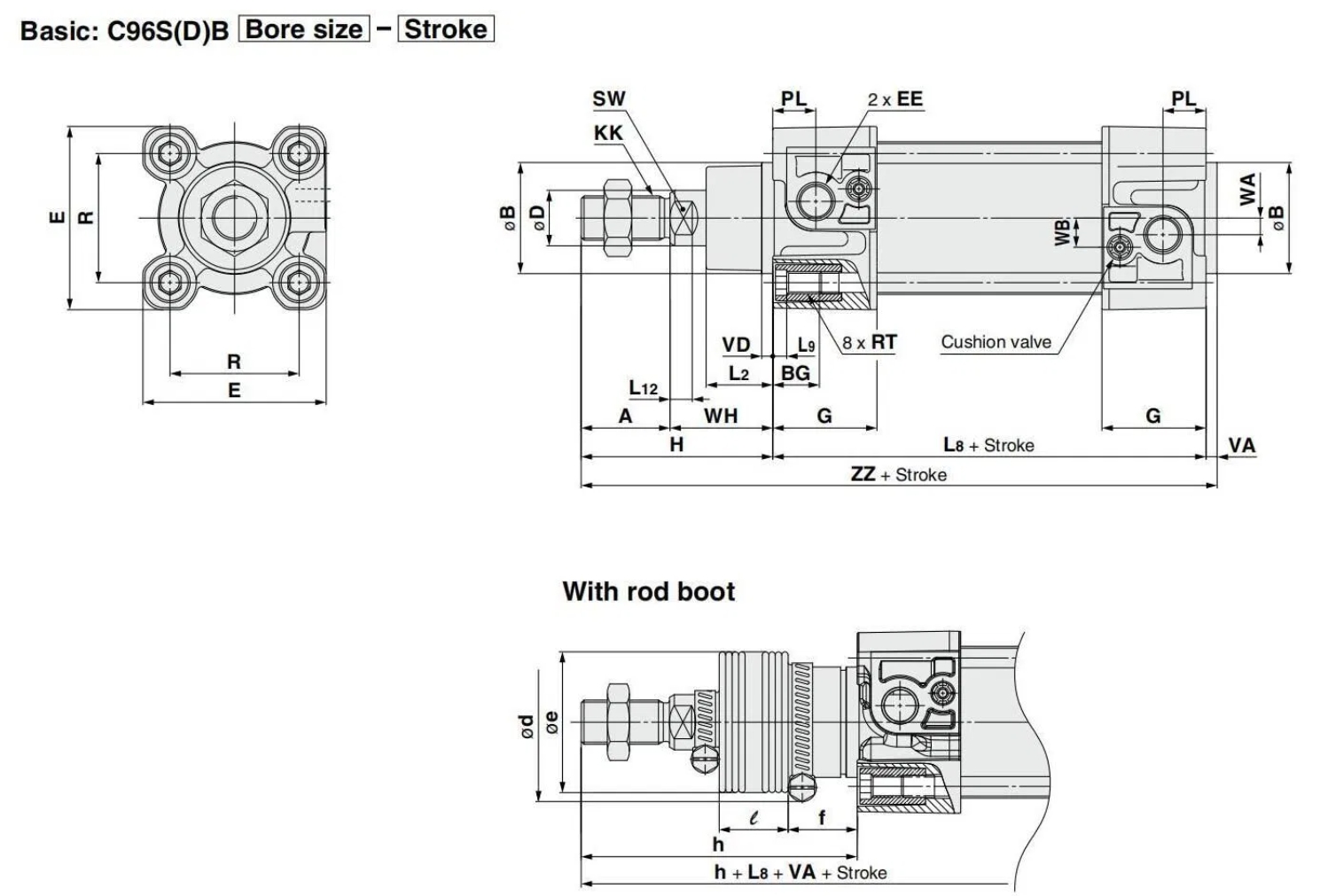

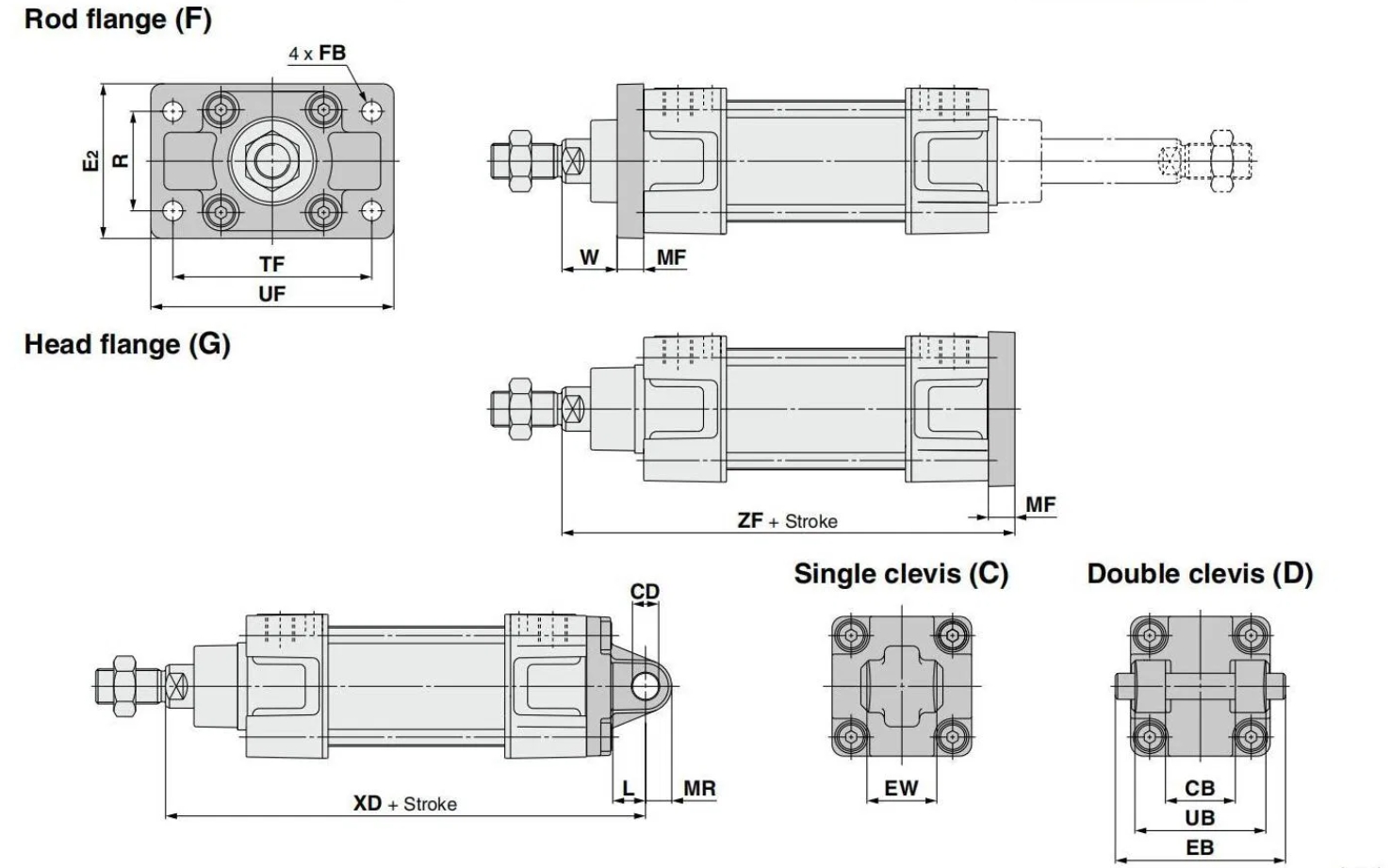

Mounting	Basic, Axial foot, Rod flange, Head flange, Single clevis, Double clevis, Center trunnion, Adjustable position trunnion
