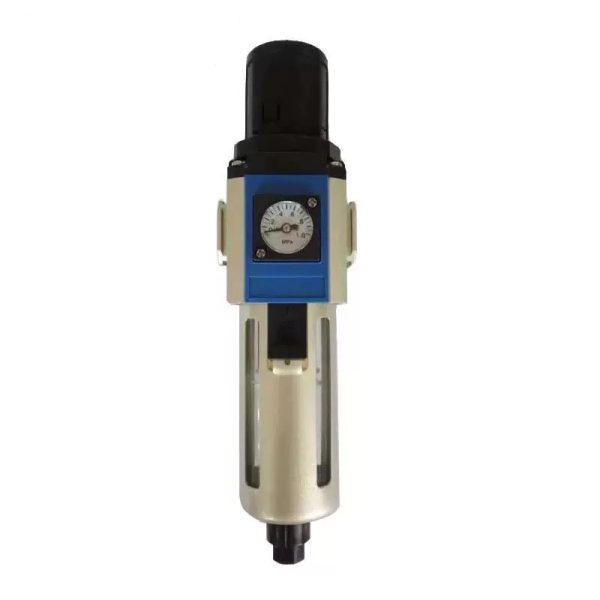

Airtac Types GFR series Air Filter Regulator Air Preparation Units Pneumatic GFR200-08 1/4″

分类 Air Source Treatment Unit

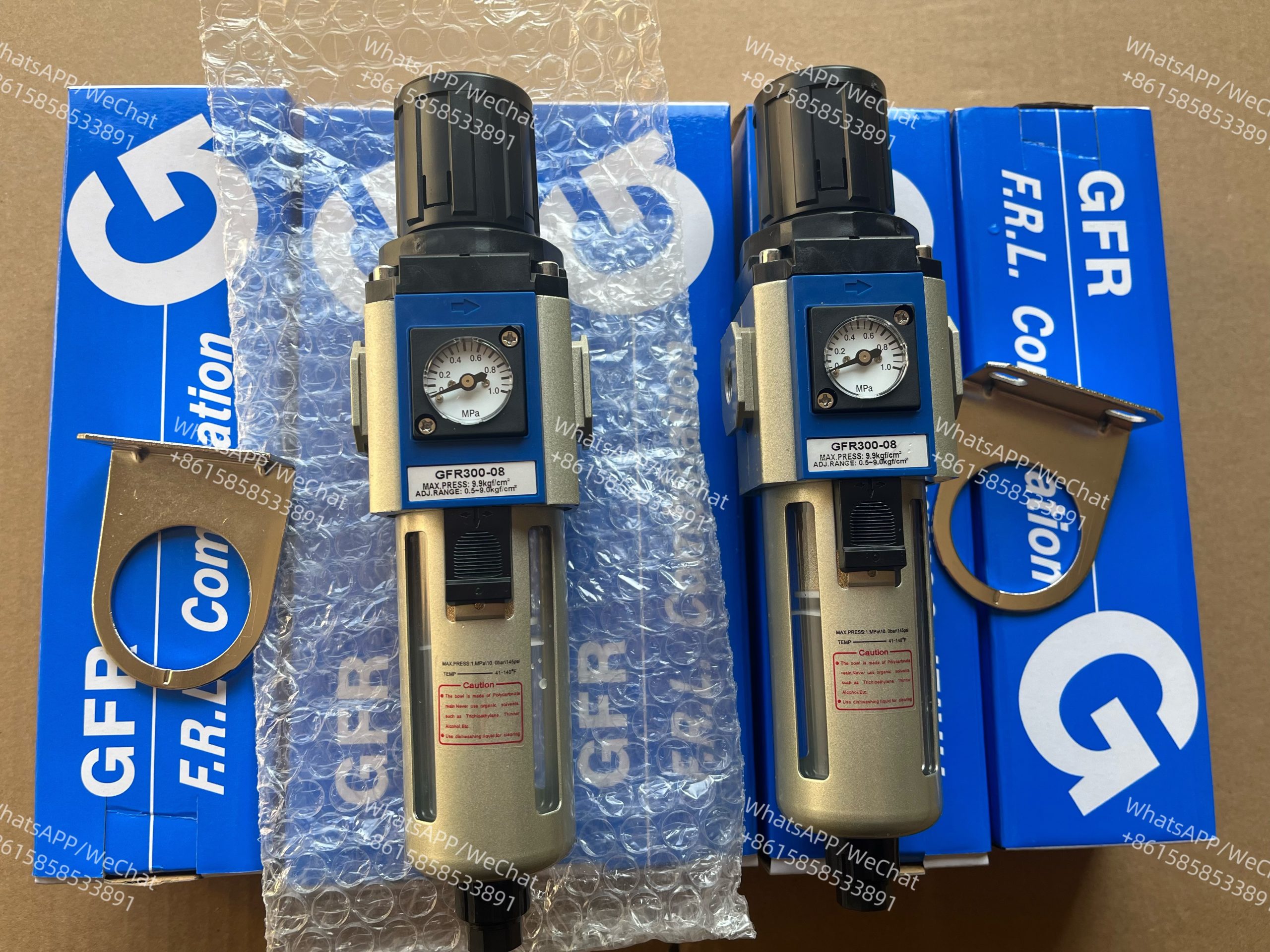

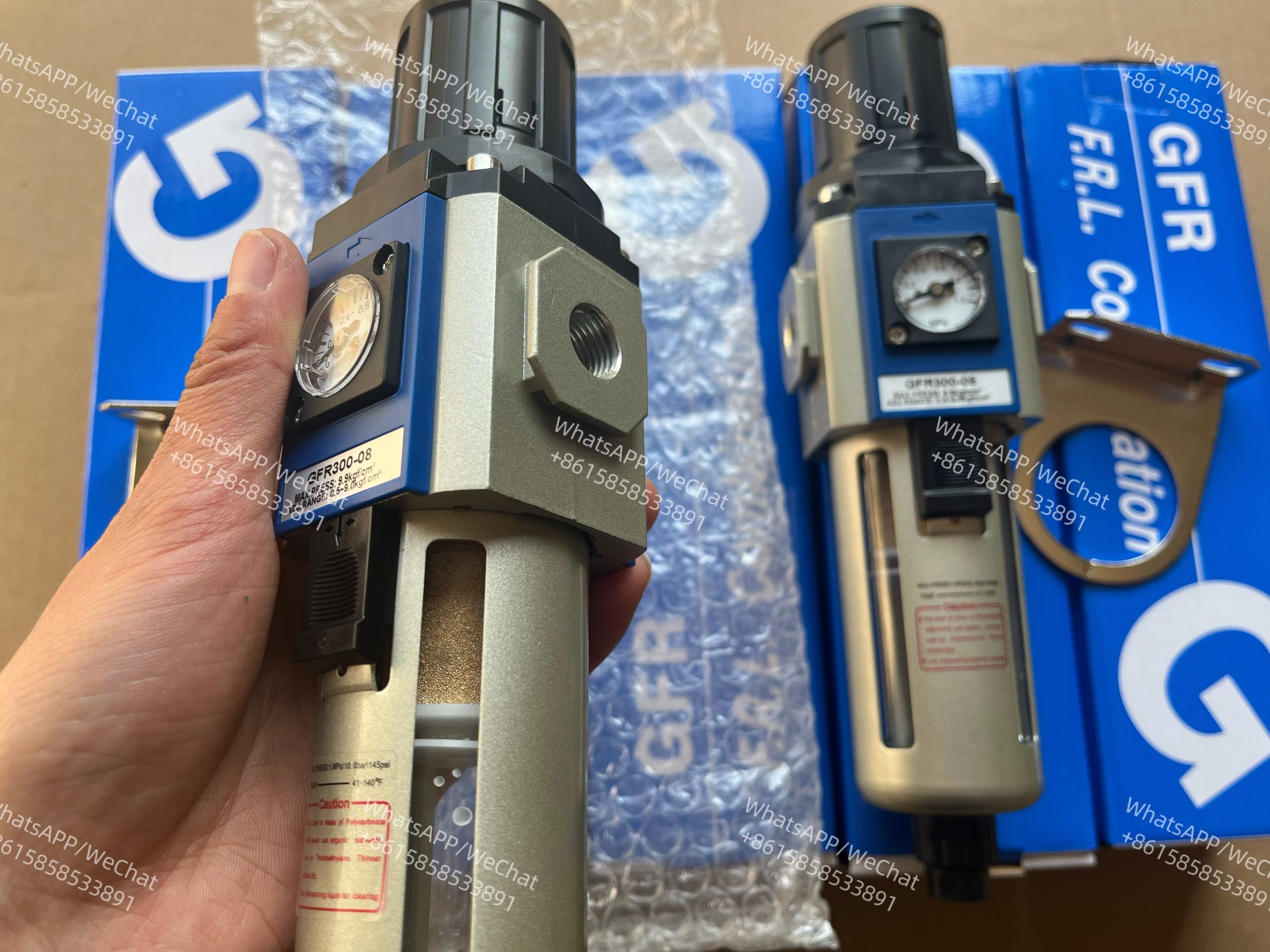

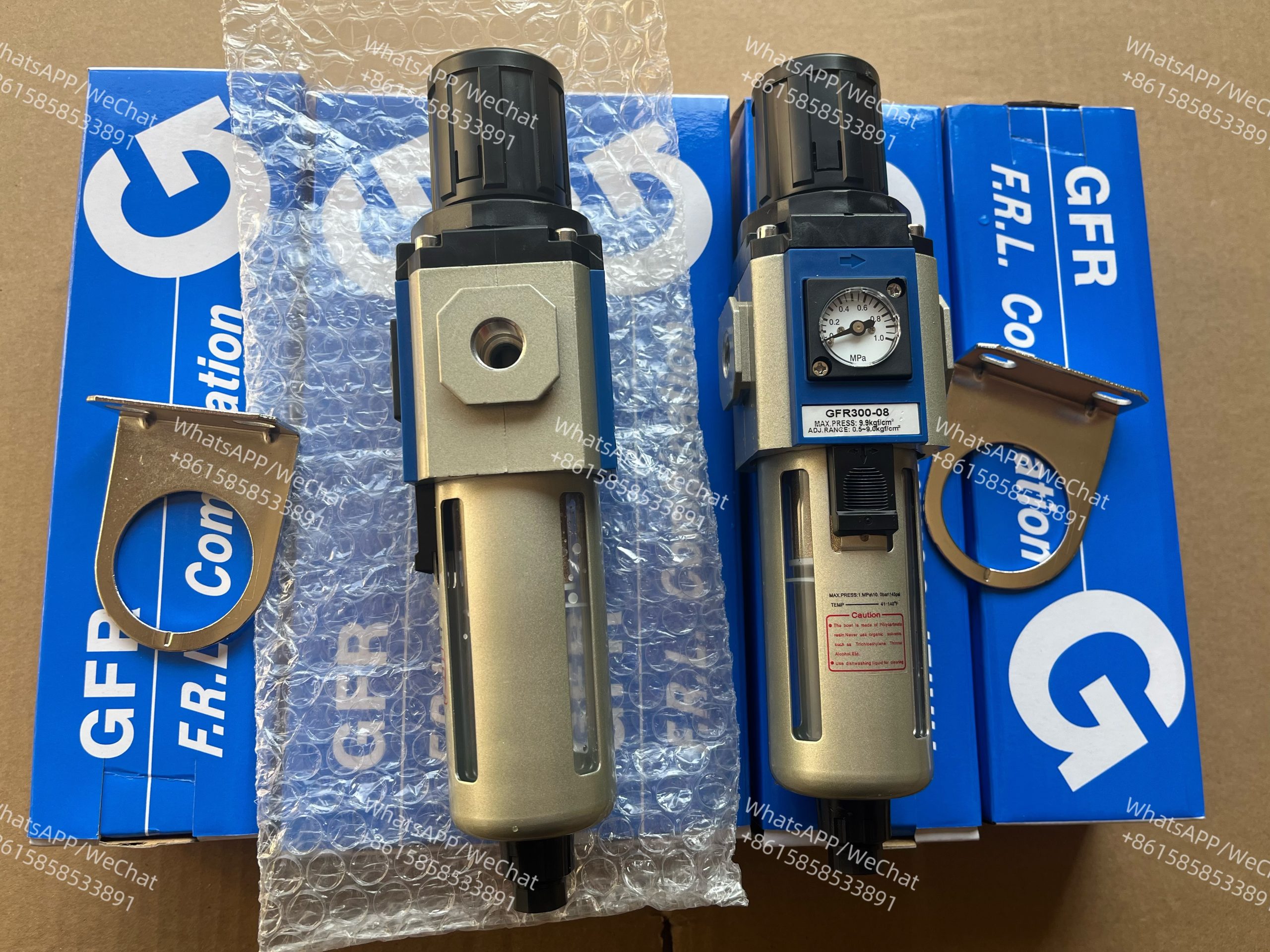

GFR Series has good performance in pressure regulation.

Good sealing performance ensures high quality and no leakage.

Due to standard modular design, it can be freely combined with air filter and lubricator .

1.Embedded square pressure gauge is used to save installation space.

2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.It has low pressure loss,high efficiency in separating water and large drain bowl capacity.

4.. Filtering grade includes 5μm and 40 μm(Optional).

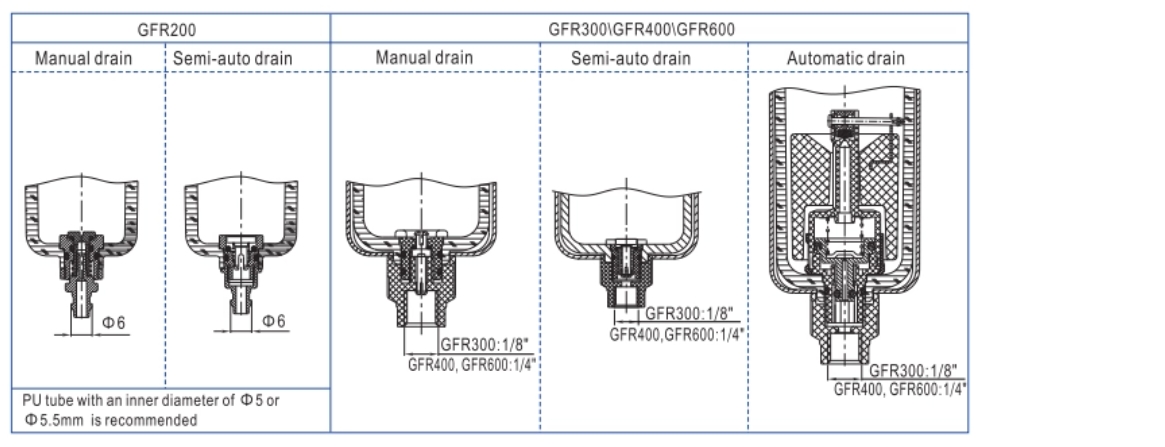

5. Three drain types are available: manual drain, semi-auto drain and automatic drain.

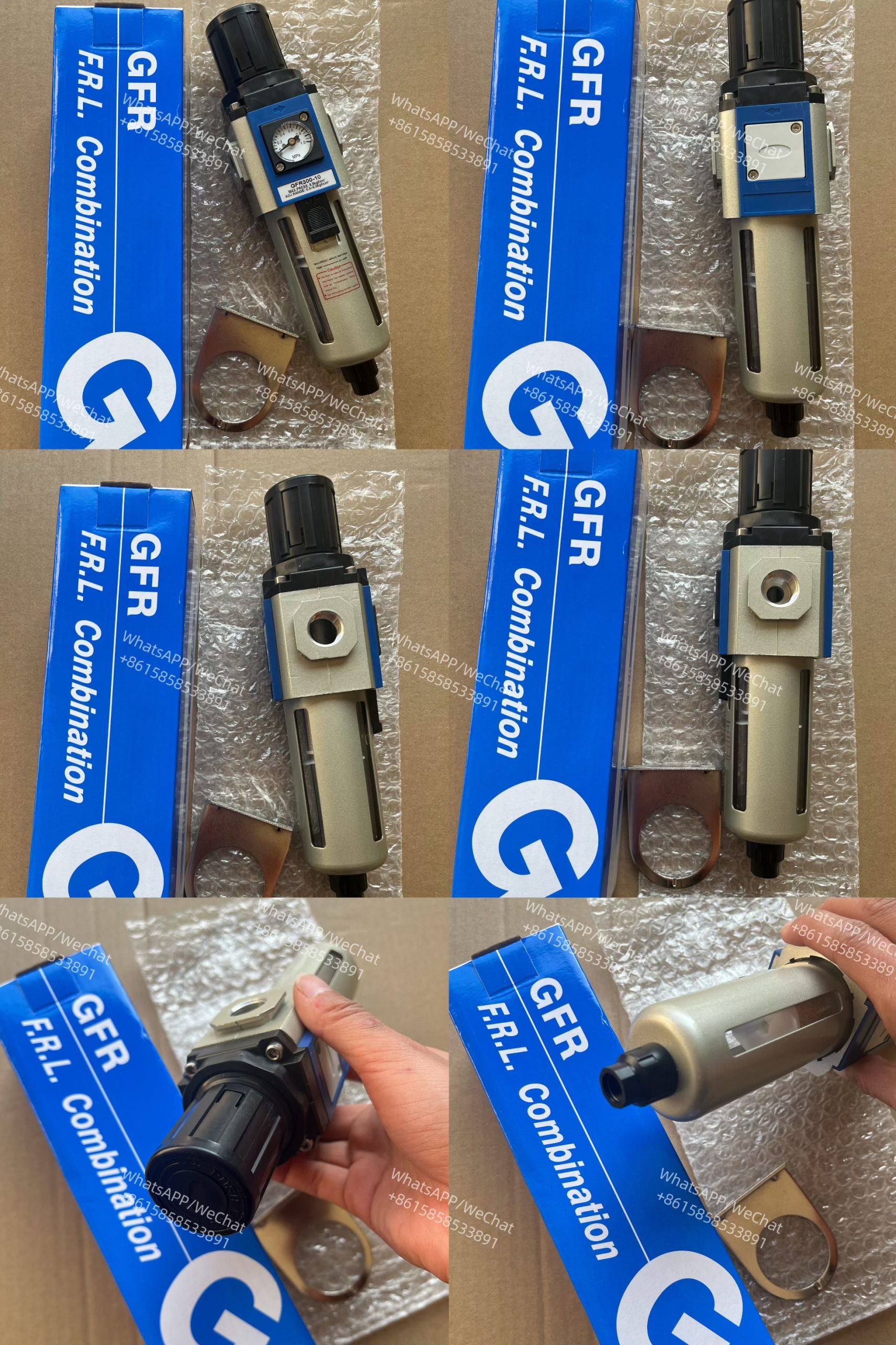

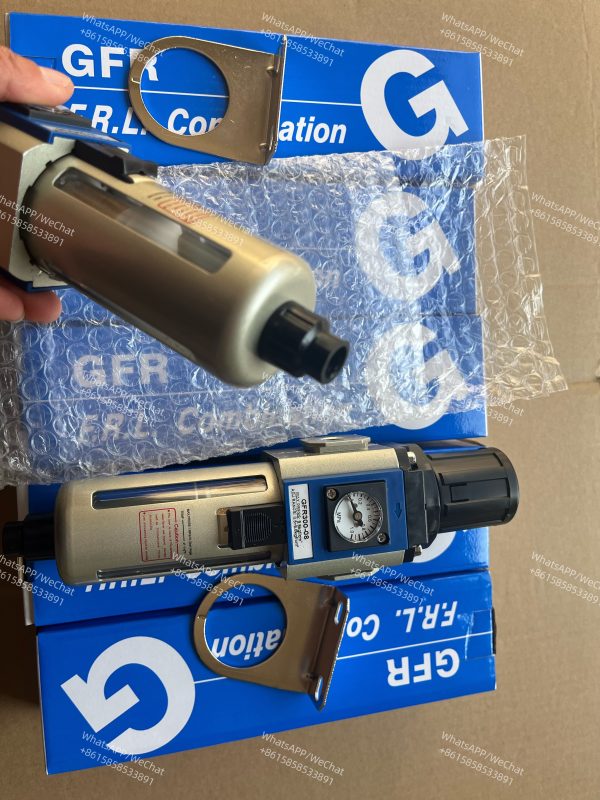

6. The bracket can be selected for installation.

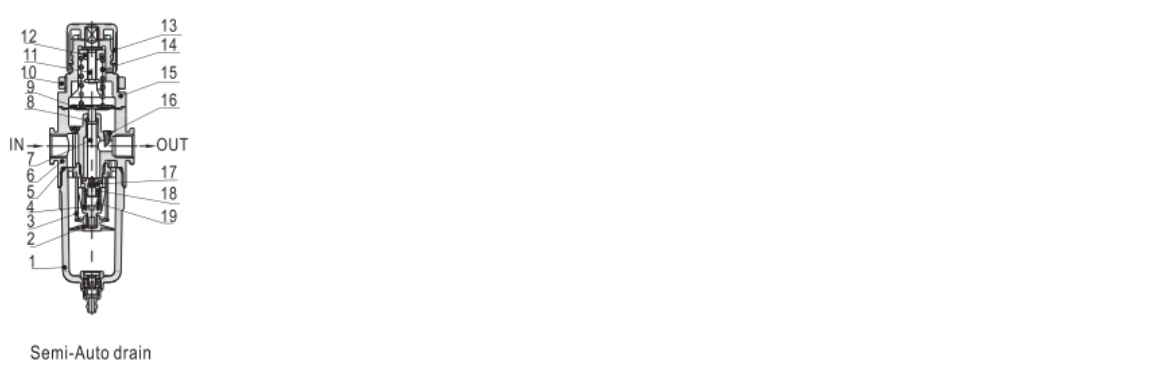

No.	ltem	Material
1	Drain bowl	Aluminum alloy(GFR600)/PC(others)
2	Umbrella baffle	High viscosity POM
3	Filter core	40μm	Agglomerated by brass grain
		5μm	Makrolon fiber
4	Air guider	High viscosity POM
5	O-ring	NBR
6	Body of filter-regulator	Aluminum alloy
7	Adjusting spool	Brass(GFR600)/POM(others)
8	O-ring	NBR
9	Diaphragm	SUS304&Rubber
10	Fixation ring cap	Aluminum alloy(GFR600)/POM(others)
11	Adjusting spindle	Steel
12	Regulator nut	Steel
13	Pressure knob	POM
14	Spring	SWC
15	Adjusting seat	Aluminum alloy(GFR600)/POM(others)
16	Feedback tube	POM
17	Adjusting plug	Brass &Rubber
18	O-ring	NBR
19	Spring	SUS304
20	Liquid meter cover	SPCC
21	Liquid meter seal	VITON
22	Liquid meter inside	PC

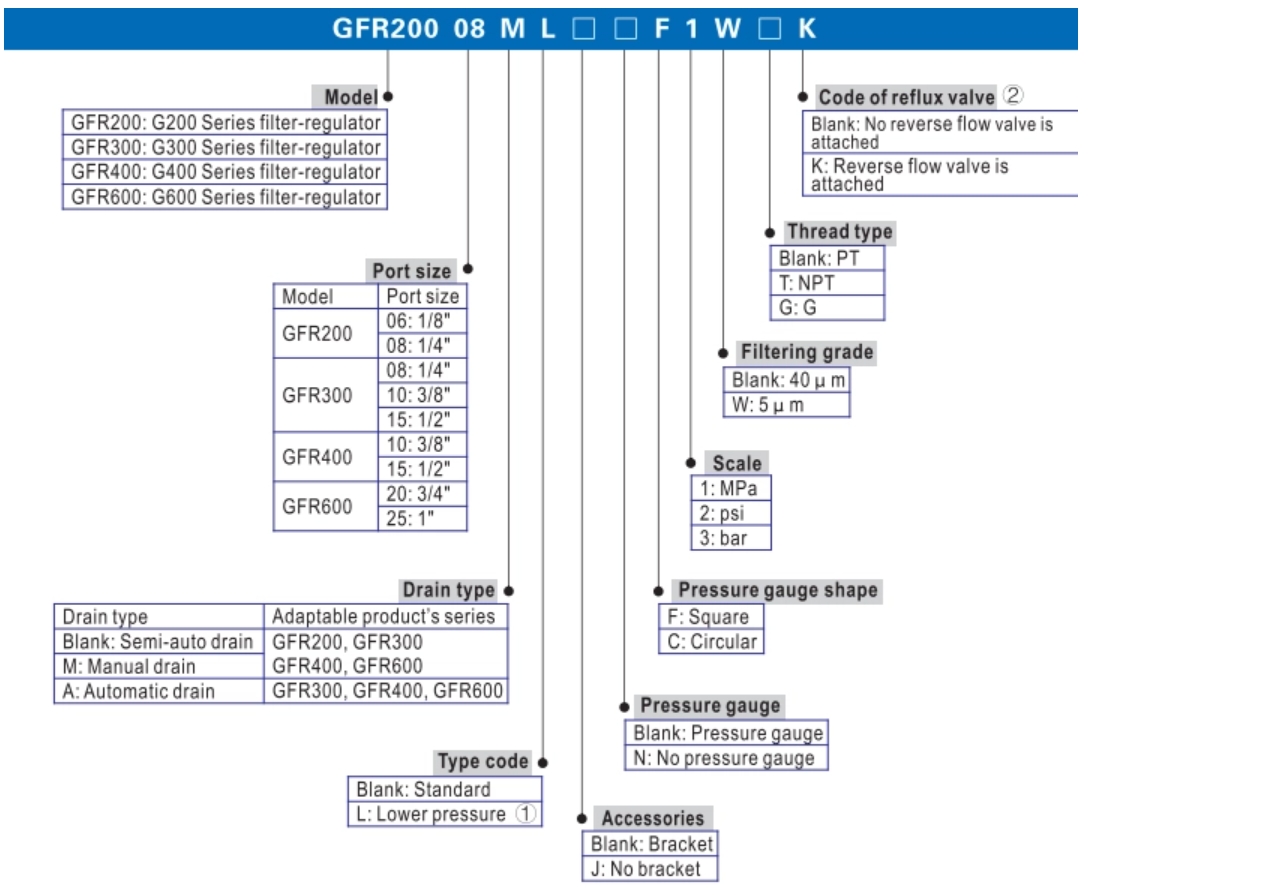

Model	GFR200-06	GFR200-08	GFR300-08	GFR300-10	GFR300-15	GFR400-10	GFR400-15
Working fluid	Air
Port size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2
Filtration	40um or 5um
Adjustable pressure range	0.15~0.9MPa
Working pressure	1.0MPa
Proof pressure	1.5MPa
Working temperature	5~60°C
Bowl drain capacity	10ml		40ml			80ml
Propositional lubrication	ISO VG32 or the samelevel lubrication
Weight	216g		500g			1026g

Filter	Regulator	Lubricator	Filter Regulator	Regulator filter	Filter regulator lubricator
GF200-06	GR200-06	GL200-06	GFR200-06	GFC200-06	GC200-06
GF200-08	GR200-08	GL200-08	GFR200-08	GFC200-08	GC200-08
GF300-08	GR300-08	GL300-08	GFR300-08	GFC300-08	GC300-08
GF300-10	GR300-10	GL300-10	GFR300-10	GFC300-10	GC300-10
GF300-15	GR300-15	GL300-15	GFR300-15	GFC300-15	GC300-15
GF400-10	GR400-10	GL400-10	GFR400-10	GFC400-10	GC400-10
GF400-15	GR400-15	GL400-15	GFR400-15	GFC400-15	GC400-15
GF600-20	GR600-20	GL600-20	GFR600-20	GFC600-20	GC600-20
GF600-25	GR600-25	GL600-25	GFR600-25	GFC600-25	GC600-25
